Specifications

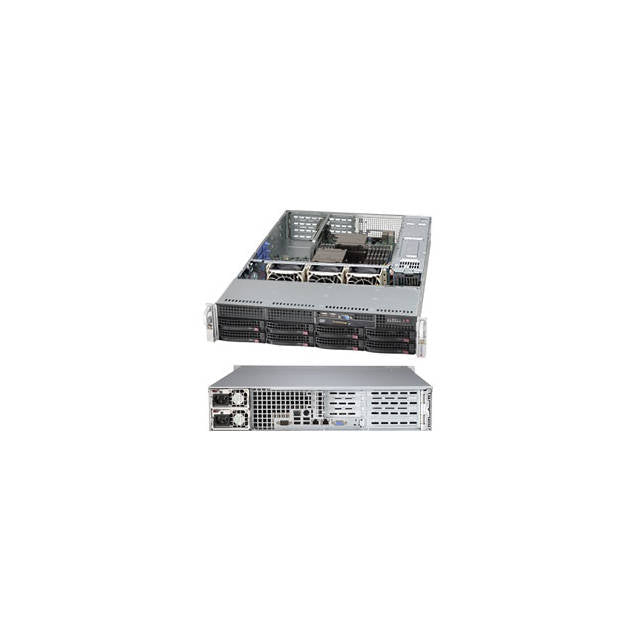

• Mfr Part Number: CSE-825TQ-R740WB
• Case Type: 2U Rackmount
• Color: Black
• M/B Type: Proprietary WIO
• Processor Support: Dual, Single Intel/AMD Processors
• Drive Bays: 8x 3.5" SAS / SATA Hot-swap Drive Bays
• Backplane: 1x 2U SAS backplane w/ Enclosure Management
• Expansion Slots: 4x Full-height Full-length I/O, 3x Low-Profile Expansion Slots (Standard add-on cards)
• Cooling System: 3x (80x38mm) 4pin PWM Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, Hard Drive Activity, 2x Network Activity, System Information, Power Fail
• Power Supply: 740W 80 PLUS Platinum Certified (1+1) Redundant High-efficiency Power Supply w/ PMBus
• Dimensions (WxDxH): 17.2 x 25.5 x 3.5 inch / 437.0 x 648.0 x 89.0 mm
• Gross Weight: 52.0 lbs / 23.6 kg
• Chassis Only. Does not include CPU, MB, HDD, memory or other parts.
