Specifications

• Mfr Part Number: CSE-825TQC-R740LPB

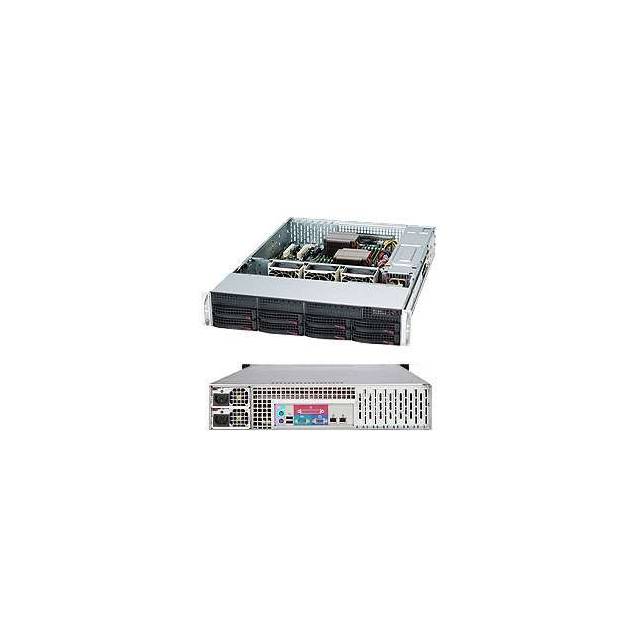

• Case Type: 2U Rackmount
• Color: Black
• M/B Type: Max Motherboard Size - 13.68 x 13.00 inch, E-ATX 12.0 x 13.0 inch, ATX 12.0 x 10.0 inch
• Processor Support: Dual, Single Intel/AMD Processors

• Drive Bays: 8x 3.5" Hot-swap SAS/SATA Drive Bays w/ SGPIO; 2x 3.5" Fixed Drive Bays
• Expansion Slots: 7x Low-profile Expansion Slots
• Backplane: 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
• Cooling System: 3x 80mm 7000 RPM Hot-swap PWM Cooling Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power Status, Hard Drive Activity, 2x Network Activity, Power Fail, System Information
• Power Supply: 740W 80 PLUS Platinum Certified Redundant Platinum Power Supply W/PMbus

• Dimensions (WxDxH): 17.2 x 25.5 x 3.5 inch / 437.0 x 647.0 x 89.0 mm
• Gross Weight: 52.0 lbs / 23.59 kg

• Chassis Only. Does not include CPU, MB, HDD, memory or other parts.
