Specifications

• Mfr Part Number: CSE-836BE1C-R1K03B

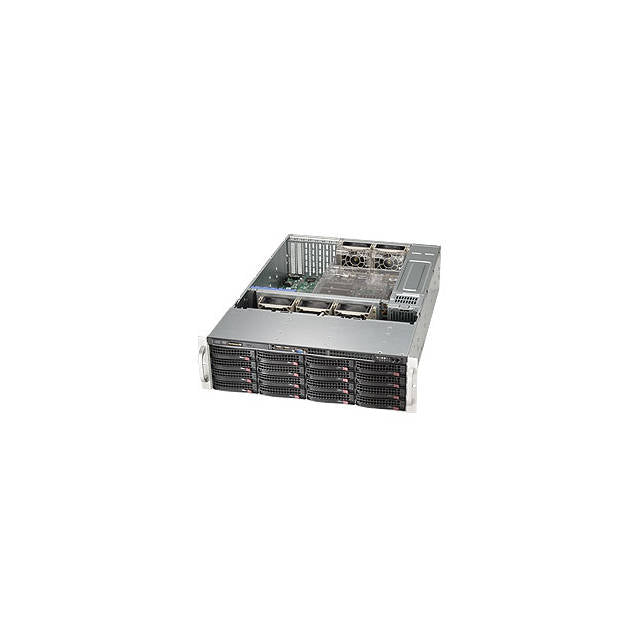

• Case Type: 3U Rackmount
• Color: Black
• M/B Type: Motherboards size - 13.68 x 13.00 inch
• Processor Support: Dual, Single Intel/AMD Processors
• Drive Bays: 16x 3.5" Hot-swap SAS/SATA Drive Bays w/ SES2
• Expansion Slots: 7x Full-height & Full-length Expansion Slots
• Backplane: BPN-SAS3-836EL1 (SAS3 12Gb/s Single Expander backplane with 16 SAS3 3.5" drive slots connected through 4 mini-SAS3 HD cable connectors)
• Cooling System: 3x 8cm Hot-swap Redundant PWM Cooling Fans; 2x 8cm Hot-swap Exhaust Fans & Air Shroud
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: 2x Network Activity, HDD Activity, Power Status, Power Fail, System Information
• Power Supply: 1000W 80 Plus Titanium Level Certified High-efficiency AC-DC Redundant Power Supplies w/ PMBus and I2C
• Dimensions (WxDxH): 17.2 x 25.5 x 5.2 inch / 437.0 x 647.0 x 132.0 mm
• Gross Weight: 72.0 lbs / 32.66 kg
• Chassis Only. Does not include CPU, MB, HD, memory or other components.
