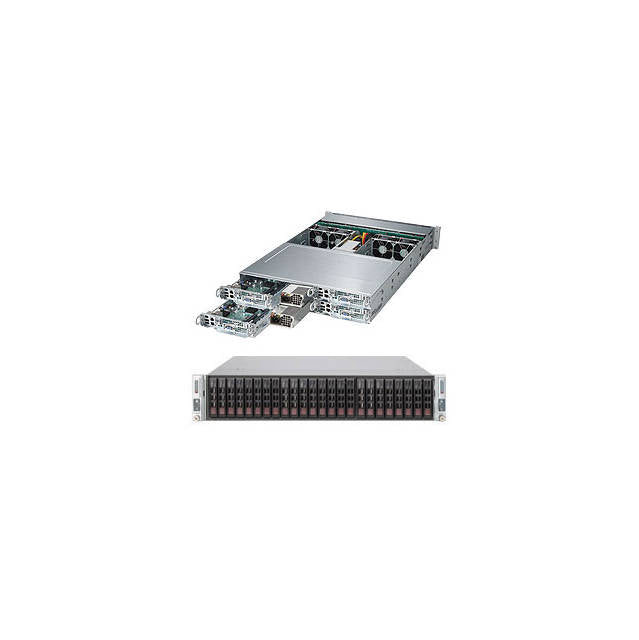

Zoom Supermicro SuperServer SYS-2028TP-HTR Four Node Dual LGA2011 2000W 2U Rackmount Server Barebone System (Black)

Supermicro SuperServer SYS-2028TP-HTR Four Node Dual LGA2011 2000W 2U Rackmount Server Barebone System (Black)

$4,476.64 Regular price $4,798.96

Specifications

  • Mfr Part Number: SYS-2028TP-HTR
  • Motherboard: Super X10DRT-P
  • Processors per Node: Dual LGA2011
    • Support Intel Xeon E5-2600 v3 Family Processors
    • Support up to 18 Cores
    • Cache up to 45MB
    • QPI up to 9.6 GT/s
    • Support up to 145W TDP
  • Chipset per Node: Intel C612 Express
  • Memory per Node: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
  • Slots per Node: 1x PCI-Express 3.0 x16 Slot (Low-profile), 1x "0 slot" (x16)
  • SATA per Node: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
  • Video per Node: ASPEED AST2400 BMC Graphics
  • LAN per Node: Intel i350-AM2 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
  • Drive Bays per Node: 6x 2.5" Hot-swap SAS/SATA HDD Trays
  • Ports per Node: 2x USB 3.0 Ports, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
  • Form Factor: 2U Rackmount
  • Power Supply: 2000W 80 PLUS Platinum Certified Redundant Power Supplies with I2C & PMBus
  • System Cooling: 4x 8cm Heavy Duty PWM Fans w/ Optimal Fan Speed Control
  • Front Panel:
    • Buttons: Power On/Off, System Reset, UID
    • LEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID)
  • Color: Black
  • Dimensions (WxDxH): 17.25 x 28.50 x 3.47 inch / 438.0 x 724.0 x 88.0 mm
  • Gross Weight: 85.0 lbs / 38.6 kg
  • RoHS Compliant

Vendor: Supermicro
