Specifications

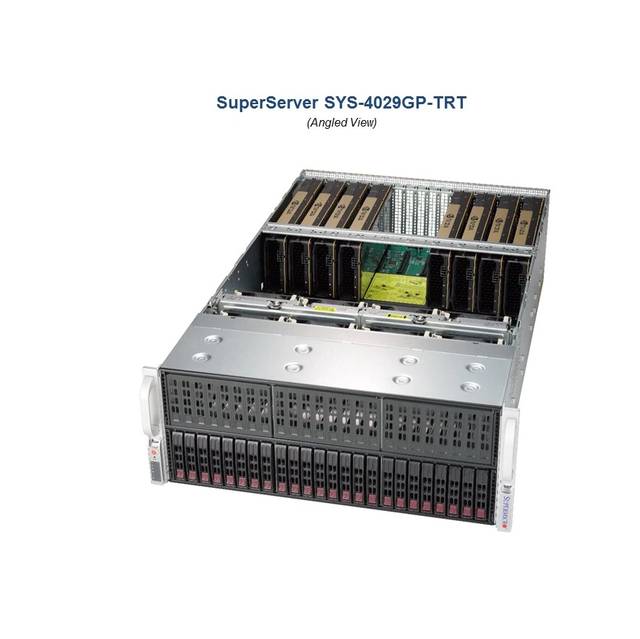

• Mfr Part Number: SYS-4029GP-TRT

• Motherboard: Super X11DPG-OT-CPU
• Processor: Dual LGA3647
  • Supports Intel Xeon Scalable Processors
  • 3 UPI up to 10.4GT/s
  • Supports CPU 70-205W
  • Supports up to 28 Cores with Intel HT Technology
• Chipset: Intel C622
• Memory: 24x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Supports up to 3TB ECC/3DS Load Reduced Memory
• Slots: 8x PCI-Express 3.0 x16 Slots (double-width), 2x PCI-Express 3.0 x8 Slots, 1x PCI-Express 3.0 x4 Slot
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10

• Video: ASPEED AST2500 BMC Graphics
• LAN: Dual Port 10GbE from C622

• Drive Bays: 24x 2.5" Hot-swap SAS/SATA Drive Bays

• Ports: 4x USB 3.0 Ports (rear), 1x VGA Port, 2x RJ45 10GBase-T LAN Ports, 1x RJ45 Dedicated IPMI LAN Port

• Form Factor: 4U Rackmount
• Power Supply: 2000W 80 PLUS Titanium Level Redundant Power Supplies w/ PMBus
• System Cooling: 8x 92mm Hot-swap Cooling Fans, 1x Air Shroud
• Color: Black

• Dimensions (WxDxH): 17.2 x 29.0 x 7.0 inch / 437.0 x 737.0 x 178.0 mm

• Weight: 65.5 lbs / 29.7 kg

• RoHS Compliant
