Specifications

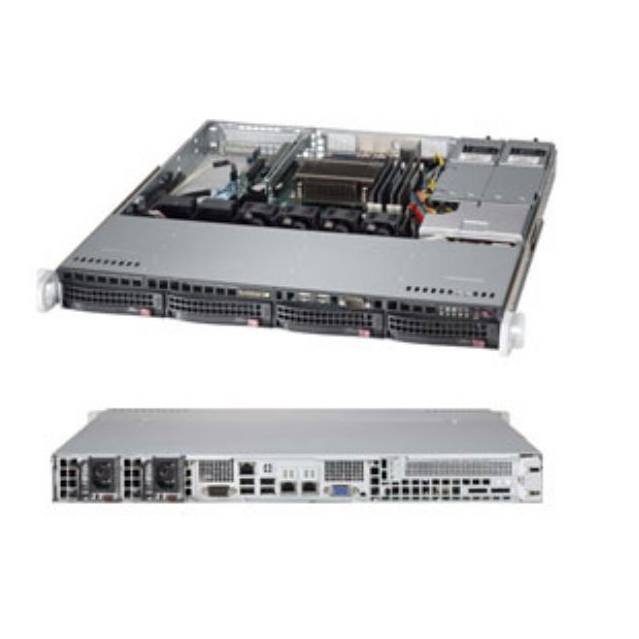

• Mfr Part Number: SYS-5018D-MTRF
• Motherboard: Super X10SLM-F
• Processor: LGA1150
  • Supports Intel Xeon E3-1200 v3 Family Processors
  • Supports 4th Generation Intel Core i3/ Pentium/ Celeron Processors
• Chipset: Intel C224 Express PCH
• Memory: 4x 240pin DDR3-1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8; Full-height)
• SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10; 2x SATA2 Ports, Support RAID 0, 1
• Video: Aspeed AST2400 BMC Graphics
• LAN: Intel i217LM and Intel i210AT Gigabit Ethernet Controllers; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays: 4x 3.5" Hot-swap SATA3 HDDs w/ RAID
• Backplane: SAS2/SATA3 HDD Backplane (SAS support requires optional SAS controller)
• Ports: 4x USB 3.0 Ports (3 via headers, 1 Type A), 6x USB 2.0 Ports (4 rear, 2 via header), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level Power Supply w/ PMBus and I2C
• System Cooling: 4x 40mm 12,500 RPM PWM Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, HDD Activity, 2x Network Activity, System Overheat
• Color: Black
• Dimensions (WxDxH): 17.2 x 19.8 x 1.7 inch / 437.0 x 503.0 x 43.0 mm
• Gross Weight: 18.6 lbs / 8.5 kg
• RoHS Compliant
