Specifications

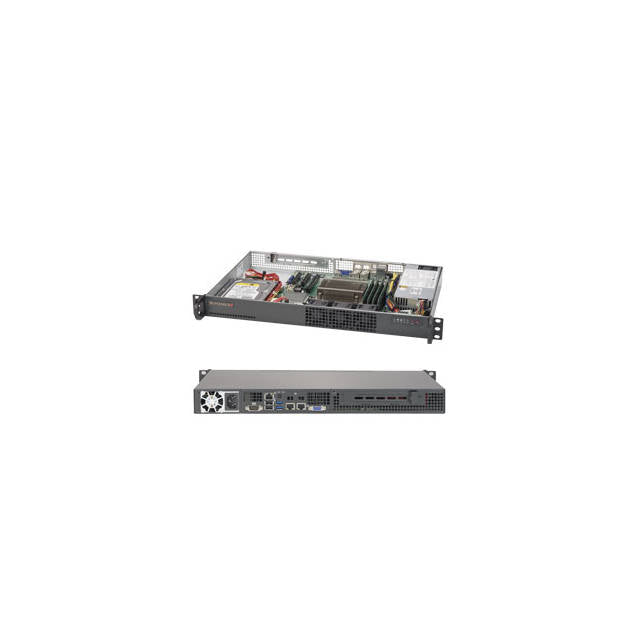

• Mfr Part Number: SYS-5019S-L
• Motherboard: Super X11SSL-F
• Processor: LGA1151
  • Supports Intel Xeon E5-1300 v5 Processor
  • Supports 6th Generation Intel Core i3 Processor
  • Support up to 45W TDP
• Chipset: Intel C232
• Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
• Slots: 1x PCI-Express 3.0 x8 AOC Slot
• SATA: 2x SATA3 Ports, Supports RAID 0, 1, 5, 10
• Video: Aspeed AST2400 BMC Graphics
• LAN: Dual Intel I210-AT Gigabit Ethernet Controllers
• Drive Bays: 1x 3.5" or 2x 2.5" Internal Drive Bays
• Ports: 1x USB 3.0 Port, 2x USB 2.0 Ports, 1x VGA Port, 1x Serial Port (rear), 2x RJ45 LAN Ports, 1x RJ45 Shared IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 200W 80 Plus Gold Certified Low Noise AC-DC Power Supply w/ PFC
• System Cooling: 2x (40x28mm) 4-pin PWM Cooling Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, HDD Activity, 2x Network Activity, System Overheat, Information
• Color: Black
• Dimensions (WxDxH): 17.2 x 11.3 x 1.7 inch / 437.0 x 287.0 x 43.0 mm
• Weight: 8.45 lbs / 3.83 kg
• RoHS Compliant
