Specifications

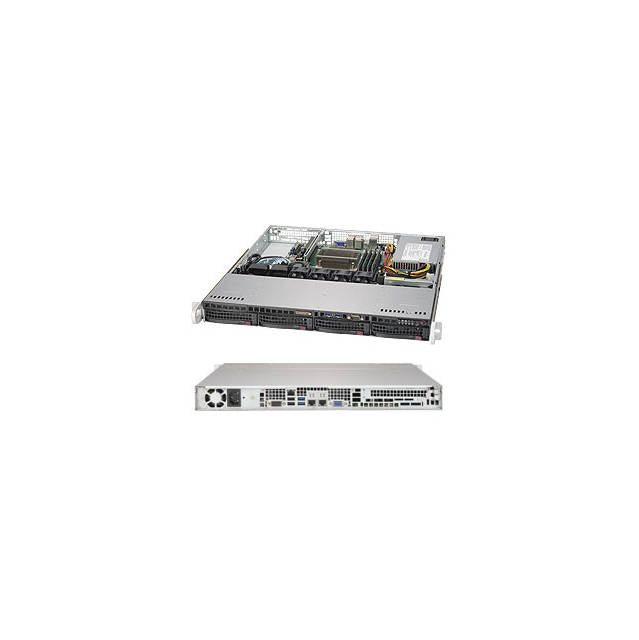

• Mfr Part Number: SYS-5019S-M
• Motherboard: Super X11SSH-F
• Processor: LGA1151
  • Supports Intel Xeon E3-1200 v5 Family Processors
  • Supports 6th Generation Intel Core i3 Processors
  • Supports up to 80W TDP
• Chipset: Intel C236
• Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
• Slots: 1x PCI-Express 3.0 x16 (runs at x8) AOC slot; 1x M.2 Cnnector
• SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2400 BMC Graphic
• LAN: Dual Intel I210AT Gigabit Ethernet Controllers
• Drive Bays: 4x Hot-swap 3.5" SATA3 HDD Bays
• Backplane: SATA/SAS HDD Backplane
• Ports: 2x USB 3.0 Ports, 2x USB 2.0 Ports, 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 350W 80 PLUS Platinum Certified AC Power Supply w/ PFC
• System Cooling: 4x 40x 28mm 4-pin PWM Cooling Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power LED, HDD Activity, 2x Network Activity, System Overheat
• Color: Black
• Dimensions (WxDxH): 17.2 x 19.8 x 1.7 inch / 437.0 x 503.0 x 43.0 mm
• Weight: 17.6 lbs / 8.0 kg
• RoHS Compliant
