Specifications

• Mfr Part Number: SYS-E200-8D
• Motherboard: Super X10SDV-6C-TLN4F
• Processor: Single socket FCBGA 1667
  • Intel Xeon D-1528 Processor (1.9GHz, 2.2GHz Max Turbo, 9MB Cache, Six-Core)
  • Supports 35W TDP
• Chipset: System on Chip
• Memory: 4x DDR4-2133/ 1866/ 1600 MHz DIMM Slots, Supports up to 128GB DDR4 ECC/REG Memory or up to 64GB DDR4 ECC/non-ECC Unbuffered Memory
• Slots: 1x PCI-Express 3.0 x4 Slot

• SATA: 6x SATA3 Ports
• Graphics: Integrated Aspeed AST2400 BMC Graphics
• LAN: Dual LAN via Intel i350-AM2 Gigabit Ethernet Controllers, Dual LAN via SoC 10GBase-T, 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays: 2.5" fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile Memory)
• Ports: 2x USB 3.0 ports (rear), 1x VGA Port, 4x RJ45 LAN Ports, 2x RJ45 LAN ports, 2x RJ45 10GBase-T Ports, 1x RJ45 Dedicated IPMI LAN Port

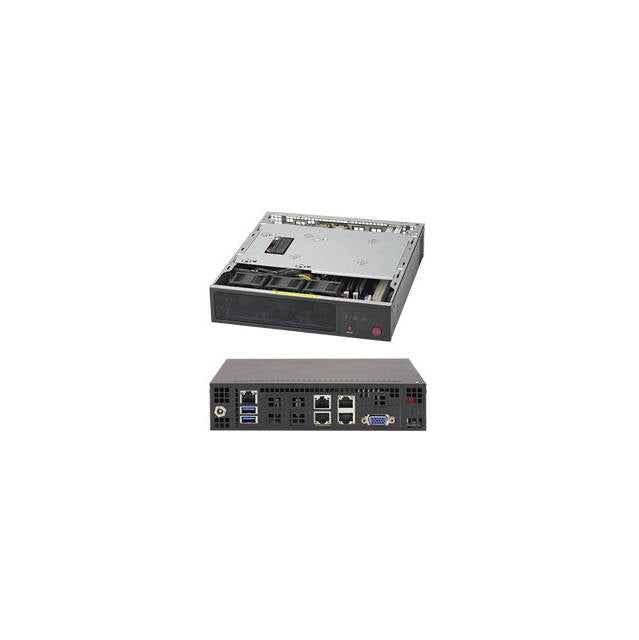

• Form Factor: Mini-1U
• Power Supply: DC Power Adapter
• System Cooling: Passive CPU heat sink and 2x 40mm chassis fans
• Front Panel:
  • Buttons: Power On/Off

  • LEDs: Power (Hard drive activity)

• Color: Black
• Dimensions (WxDxH): 7.6 x 8.9 x 1.7 inch / 193.0 x 226.0 x 43.0 mm

• Weight: 3.0 lbs / 1.36 kg
• RoHS Compliant
