Specifications

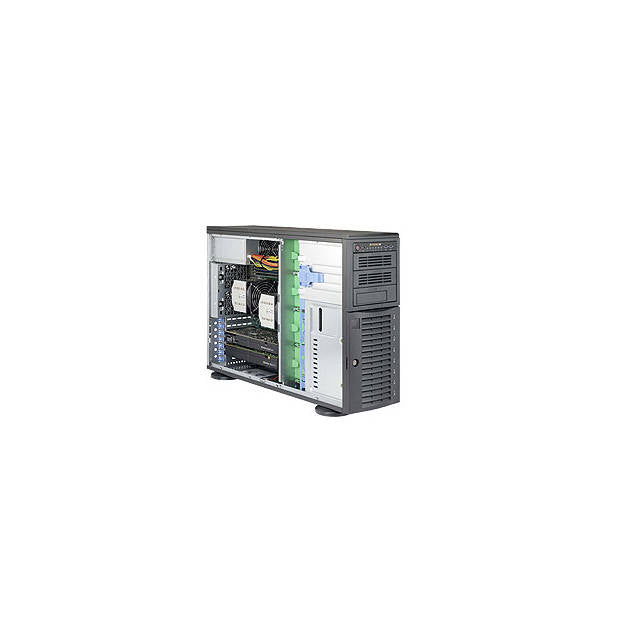

• Mfr Part Number: SYS-7048A-T
• Motherboard: Super X10DAi
• Processor: Dual LGA2011
  • Supports Xeon E5-2600 v3 Family Processors
  • Supports up to 18 Cores
  • Supports up to 45MB Cache
  • Supports up to 145W TDP
  • QPI up to 9.6 GT/s
• Chipset: Intel C612 Express
• Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 1TB ECC Load Reduced Memory or up to 512GB ECC/REG Memory
• Slots: 3x PCI-Express 3.0 x16 Slots, 2x PCI-Express 3.0 x8 Slots, 1x PCI-Express 2.0 x8 Slot (runs at x4)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• Audio: RealTek ALC889 7.1-Channel High Definition Audio CODEC
• LAN: Intel i210 Dual Port Gigabit Ethernet Controller
• Drive Bays: 8x 3.5" Hot-swap SATA/SAS Drive Trays; 3x 5.25" Peripheral Drive Bays
• Backplane: SAS/SATA Hard Drive Backplane w/ AMI MG9072
• Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type-A), 2x Serial Port (1 rear, 1 via header), 2x RJ45 LAN Ports
• Form Factor: 4U Rackmountable / Tower
• Power Supply: 1200W 80 PLUS Platinum Certified High-efficiency Power Supply, w/ PMBus
• System Cooling: 2x 2800RPM Fans, 1x 2700 RPM Fan
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, Hard Drive Activity, 2x Network Activity, System Overheat/Fan Fail
• Color: Black
• Dimensions (WxDxH): 7.0 x 25.5 x 17.8 inch / 178.0 x 648.0 x 452.0 mm
• Gross Weight: 71.0 lbs / 32.2 kg
• RoHS Compliant
