Specifications

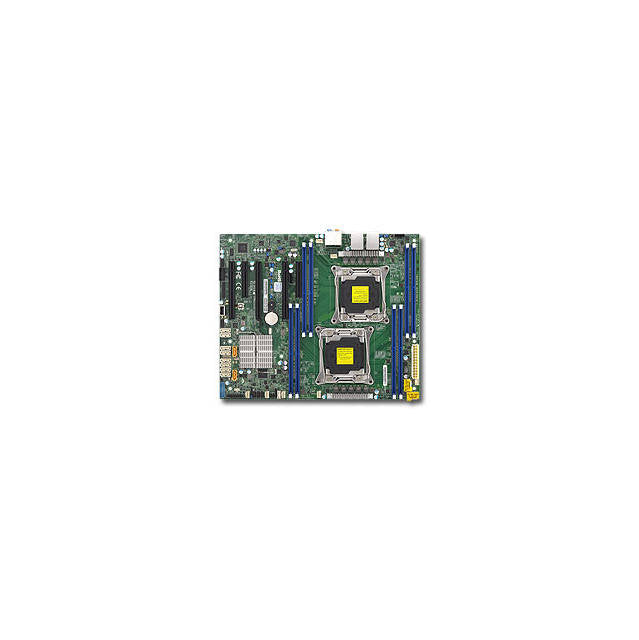

• Mfr Part Number: X10DAL-I-B
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Support up to 45MB Cache
  • QPI up to 9.6 GT/s
  • Support up to 160W TDP
• Chipset: Intel C612 Express
• Memory: 8x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
• Slots: 2x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x16 Slots (runs at x8), 1x PCI-Express 3.0 x8 Slots (runs at x4), 1x PCI-Express 2.0 x8 Slot (runs at x4)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• Audio: Realtek ALC888 7.1-Channel High Definition Audio CODEC w/ S/PDIF Header
• LAN: Intel i210 Dual-Port Gigabit Ethernet Controller
• Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 3x USB 2.0 Ports (2 via header, 1 Type A), 2x RJ45 LAN Ports
• Form Factor: ATX, 12.0 x 10.0 inch / 30.5 x 25.4 cm
• RoHS Compliant
