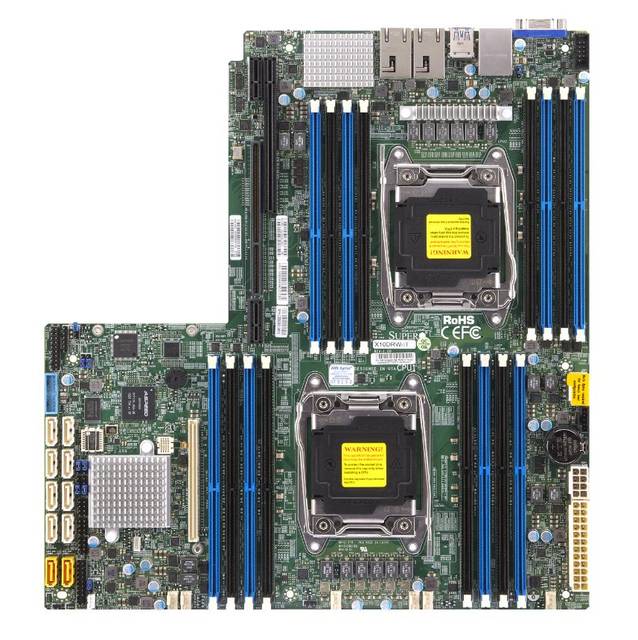

Zoom Supermicro X10DRW-IT-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ Proprietary WIO Server Motherboard

Supermicro X10DRW-IT-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ Proprietary WIO Server Motherboard

$632.50 Regular price $678.04

Specifications

  • Mfr Part Number: X10DRW-IT-B
  • CPU: Dual LGA2011
    • Support Intel Xeon E5-2600 v3 Family Processors
    • Support up to 18 Cores
    • Support  up to 45MB Cache
    • QPI up to 9.6 GT/s
    • Support up to 145W TDP
  • Chipset: Intel C612 Express
  • Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
  • Slots: 1x PCI-Express 3.0 x16 Slot (AOM); Riser card support - 1x PCI-Express 3.0 x32 Slots (Left side), 1x PCI-Express 3.0 x16 Slots (Right side)
  • SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
  • Video: ASPEED AST2400 BMC Graphics
  • LAN: Intel X540 Dual Port 10-Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)
  • Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
  • Form Factor: Proprietary WIO, 12.3 x 13.0 inch / 31.2 x 33.0 cm
  • RoHS Compliant

Vendor: Supermicro
