Specifications

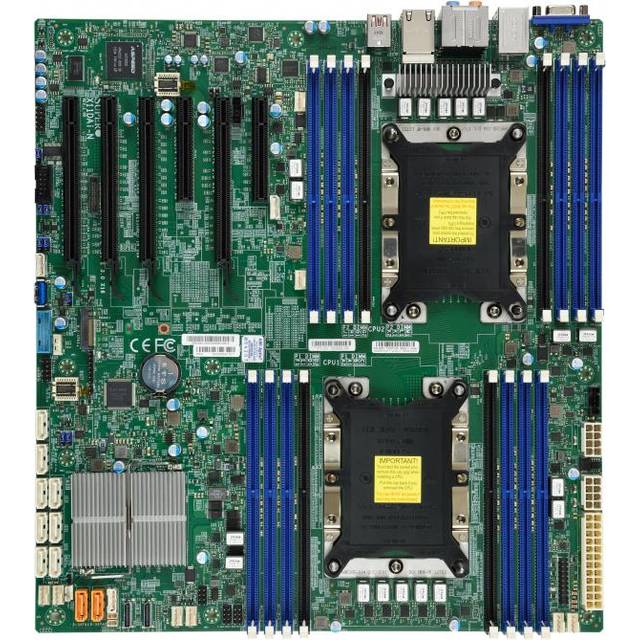

• Mfr Part Number: X11DAI-N-O
• CPU: Dual LGA3647
  • Support Intel Xeon Scalable Processors
  • TDP support 205W
  • 2 UPI up to 10.4 GT/s
• Chipset: Intel C621
• Memory: 16x DDR4-2666/ 2400/ 2133 MHz ECC DIMM Slots, Support up to 2TB 3DS ECC/REG Memory or up to 2TB 3DS ECC/Load Reduced Memory
• Slots: 4x PCI-Express 3.0 x16 Slots, 2x PCI-Express 3.0 x8 Slots
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• Audio: 7.1-Channel High Definition Audio
• Video: Aspeed AST2500 Graphics
• LAN: Dual Gigabit Ethernet Controller
• Ports: 2x USB 3.1 Ports (2 rear), 4x USB 3.0 Ports (4 via headers), 1x VGA Port
• Form Factor: E-ATX, 12.0 x 13.0 inch / 30.48 x 33.02 cm
• RoHS Compliant
