Specifications

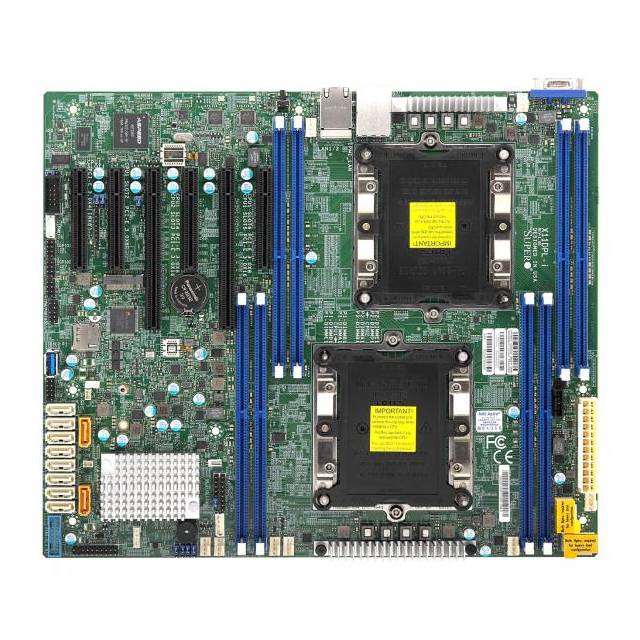

• Mfr Part Number: X11DPL-I-O
• CPU: Dual Socket P LGA3647
  • Support Intel Xeon Scalable Processors
  • CPU TDP support Up to 140W
  • 2 UPI up to 10.4 GT/s
• Chipset: Intel C621
• Memory: 8x DDR4-2666/ 2400/ 2133 MHz ECC DIMM Slots, Support up to 512GB ECC/REG Memory or up to 1TB ECC/Load Reduced Memory
• Slots: 2x PCI-Express 3.0 x16 Slots, 4x PCI-Express 3.0 x8 Slots (one runs at x4)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2500 BMC Graphics
• LAN: Dual LAN with Lewisburg Marvell 88E1512 PHY
• Ports: 3x USB 3.0 Ports (2 via header, 1 Type A), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 2x RJ45 Gigabit Ethernet LAN Ports
• Form Factor: ATX, 12.076 x 10.150 inch / 30.67 x 25.78 cm
