Specifications

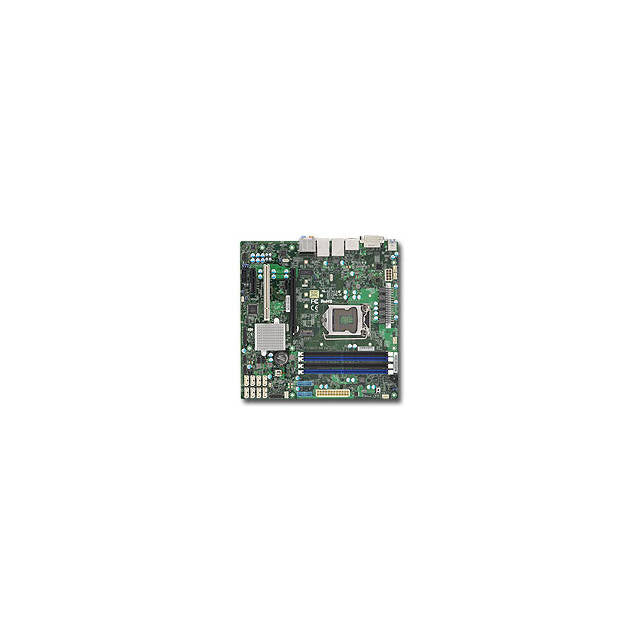

• Mfr Part Number: X11SAE-M-O
• CPU: LGA1151
  • Supports Intel Xeon processor E3-1200 v5, 6th Generation Intel Core i7/ i5/ i3/ Processors
  • Support up to 95W TDP
• Chipset: Intel C236
• Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 3.0 x4 Slot, 1x PCI Slot (5V, 32bit)
• SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
• Audio: Realtek ALC888S High Definition Audio CODEC
• LAN: Intel I210-AT + Intel PHY I219LM Gigabit Ethernet Controllers
• Ports: 2x USB 3.1 Port, 6x USB 3.0 Ports (2 rear, 4 via headers), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x DisplayPort, 1x DVI-D Port, 1x HDMI Port, 2x RJ45 LAN Ports
• Form Factor: MicroATX, 9.6 x 9.6 inch / 22.4 x 22.4 cm
