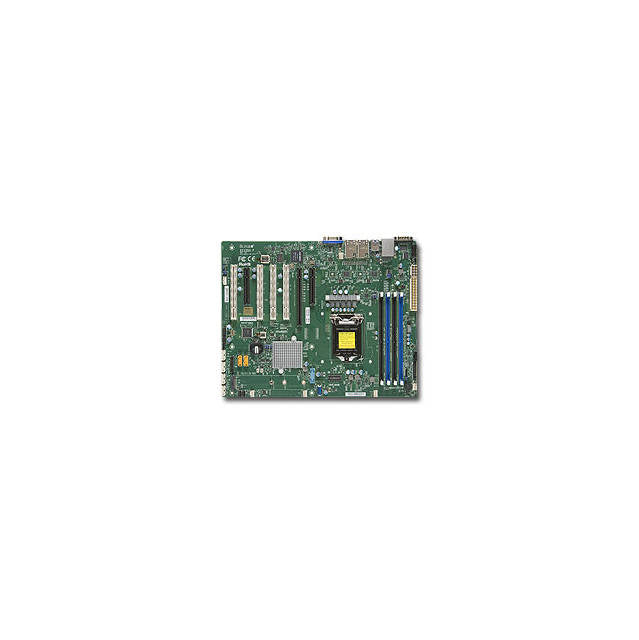

Zoom Supermicro X11SSA-F-B LGA1151/ Intel C236/ DDR4/ SATA3&USB3.0/ V&2GbE/ ATX Server Motherboard

Supermicro X11SSA-F-B LGA1151/ Intel C236/ DDR4/ SATA3&USB3.0/ V&2GbE/ ATX Server Motherboard

$289.69 Regular price $310.55

Specifications

  • Mfr Part Number: X11SSA-F-B
  • CPU: LGA1151
    • Supports Intel Xeon E3-1200 v5 Processor
    • Supports 6th Generation Intel Core i3/ Pentium/ Celeron Processors
    • Support up to 80W TDP
  • Chipset: Intel C236
  • Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
  • Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8), 2x PCI-Express 3.0 x8 Slots (one runs at x4), 4x PCI Slots (5V 32-bit)
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
  • Video: ASPEED AST2400 BMC Graphics
  • LAN: Dual Intel I210-AT Gigabit Ethernet Controllers
  • Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
  • Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
  • RoHS Compliant

Vendor: Supermicro
