Specifications

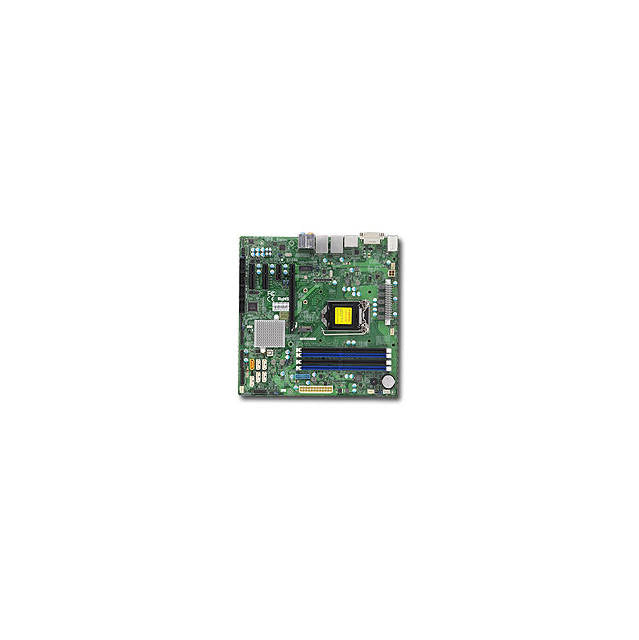

• Mfr Part Number: X11SSQ-B
• CPU: LGA1151
  • Supports 6th Generation Intel Core i7/ i5/ i3, Pentium, Celeron Processors
  • Support up to 95W TDP
• Chipset: Intel Q170 Express
• Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 3.0 x4 Slots (Open slot), 1x PCI-Express 3.0 x1 Slot
• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
  • M.2: M.2 PCIex2 M Key 2242/60/80
• Audio: Realtek ALC 888S 7.1-Channel High Definition Audio CODEC
• LAN: Intel i210-AT + Intel PHY i219LM Gigabit Ethernet Controller
• Ports: 4x USB 3.0 Port (2 rear, 2 via headers), 8x USB 2.0 Ports (4 rear, 4 via headers), 1x DisplayPort, 1x DVI-D Port, 1x HDMI Port, 2x RJ45 LAN Ports
• Form Factor: MicroATX, 9.6 x 9.6 inch / 22.4 x 24.4 cm
• RoHS Compliant
