Specifications

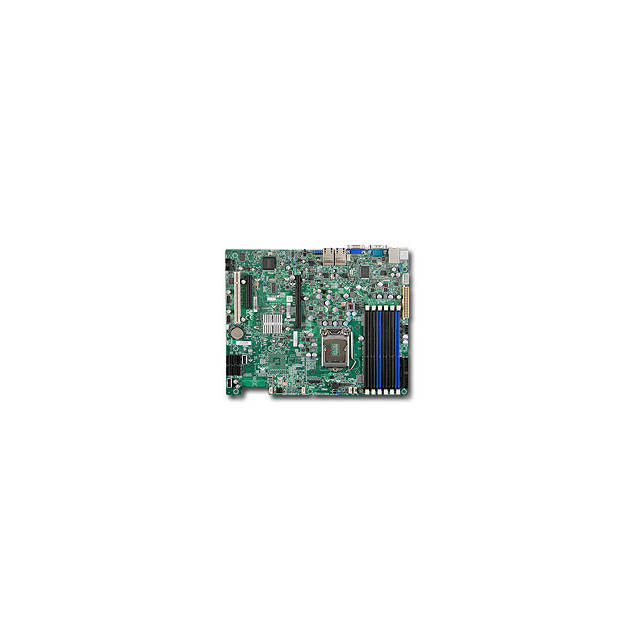

• Mfr Part Number: X8SIE-LN4F-B
• CPU: LGA1156; Supports Intel Xeon X3400/L3400 series and Core i3/Pentium G6950/Celeron G1101 Processors
• Chipset: Intel 3420
• Memory: 6x 240pin DDR3-1333/1066/800 DIMM Slots; Supports up to 32GB ECC/REG Memory or up to 16GB ECC Un-buffered Memory
• Slots: 1x PCI-Express 2.0 x16 Slot; 1x PCI-Express x8 Slot (runs at x4); 1x 32-bit PCI Slot
• SATA: 6x SATA2 Ports, Support RAID 0, 1, 5, 10 (Windows), Supports RAID 0, 1, 10 (Linux)
• Video: Matrox G200eW Graphic Controller, w/ 16MB Video Memory
• LAN: Intel 82574L Quad Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 8x USB 2.0 Ports (2 rear, 4 via header, 2 on-board); 1x PS/2 Keyboard Port; 1x PS/2 Mouse Port; 1x VGA Port; 2x Serial Ports (1 rear, 1 via header); 4x RJ45 LAN Ports; 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: ATX, 12.0 x 9.6 inch, 30.5 x 24.4 cm
• RoHS Compliant
