Specifications

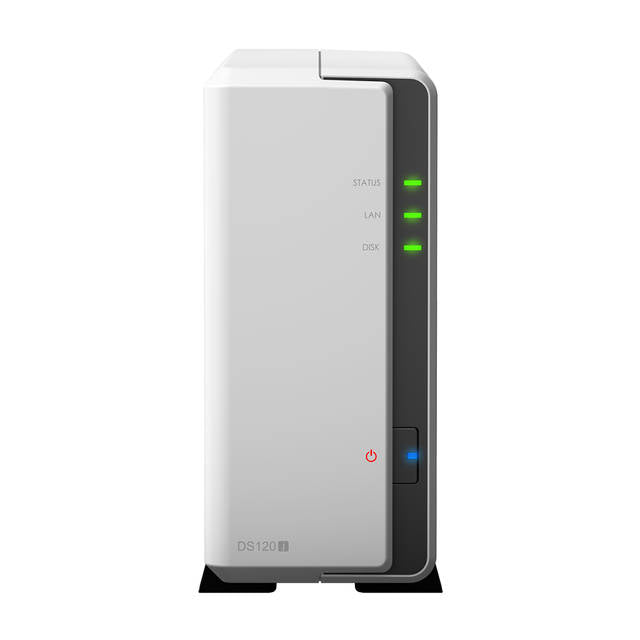

• Mfr Part Number: DS120J
• Hardware:
  • CPU: Marvell Armada 3700 88F3720 64-bit (800 MHz, Dual Core), w/ Hardware Encryption Engine
  • Memory: 512 MB DDR3L
  • Drive Bay: 1x 3.5" or 2.5" SATA HDD
  • Maximum Internal Raw Capacity: 16 TB (16 TB drive x 1) (Capacity may vary by RAID types)
  • External Ports: 1x RJ-45 1GbE LAN Port, 2x USB 2.0 Ports
  • Fan: 1x (60 x 60mm) Fan
  • Noise Level: 16.9 dB(A)
  • Power Recovery
  • Scheduled Power On/Off
  • Wake on LAN/WAN
  • Power Supply Unit/Adapter: 36W
  • AC Input Power Voltage: 100 ~ 240 V AC
  • Power Frequency: 50/60Hz, Single Phase
• Networking Protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
• Security: Firewall, encrypted shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS (customizable cipher suite)
• File System:
  • Internal: EXT4
  • External Drives: EXT4, EXT3, FAT, NTFS, HFS+, exFAT
• File Sharing:
  • Maximum Local User Accounts: 512
  • Maximum Local Groups: 128
  • Maximum Shared Folder: 256
  • Maximum Concurrent CIFS/AFP/FTP Connections: 50
• Utilities: Synology Assistant
• Applications:
  • File Station: Virtual drive, remote folder, Windows ACL editor, compressing/extracting archived files, bandwidth control for specific users or groups, creating sharing links, transfer logs
  • FTP Server: Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocol, boot over the network with TFTP and PXE support, transfer logs
  • Web Station: Virtual host (up to 30 websites), PHP/MariaDB, 3rd-party applications support
  • iOS/Android Applications: Synology Drive, DS audio, DS photo, DS video, DS cam, DS cloud, DS file, DS finder, DS note, Moments
• Supported Clients: Windows 7 and 10, Mac OS X 10.11 onwards
• Certifications: FCC, CE, BSMI, EAC, VCCI, CCC, RCM, KC
• Dimensions (WxDxH): 71.0 x 224.0 x 166.0 mm
• Weight: 0.7 kg
• Package Contents: DS120j main unit, Accessory Pack, AC Power Adapter, RJ-45 LAN Cable, Quick Installation Guide
• RoHS Compliant
