Specifications

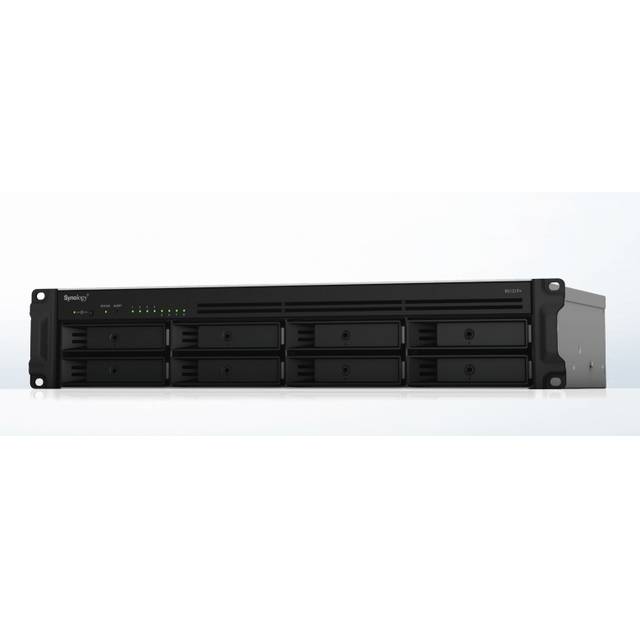

• Mfr Part Number: RS1219+
• Hardware:
  • CPU: Intel Atom C-2538 Quad Core 2.4GHz w/ Hardware Encryption Engine (AES-NI)

  • Memory: 2GB DDR3L-1600 Non-ECC SO-DIMM (expandable up to 16 GB with 8GB SO-DIMM x 2)
  • Drive Bays: 8x 3.5" or 2.5" SATA/SSD/HDD (Drives not included), 2x M.2 SATA 2280/ 2260/ 2242 SSD1 (Drives not included)
  • Hot Swappable Drive
  • External Interface: 2x USB 3.0 Ports, 1x eSATA port
  • LAN: 4x RJ45 1GbE LAN Port

  • Wake on LAN/WAN
  • PCIe 2.0 slot: 1x 4-lane x8 slot (10GbE network interface cards support, M.2 SATA SSD adapter card support)

  • Scheduled power on/of

• Networking Protocol: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
• Security: Firewall, encrypted shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS (Customizable cipher suite)
• File System:
  • Internal: Btrfs, EXT4

  • External: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT

• Storage management:

  • Maximum single volume size: 108TB

  • Maximum of system snapshots: 65,5366

  • Maximum internal volumes: 512

  • Maximum iSCSI targets: 128

  • Maximum iSCSI LUNs: 256

  • iSCSI LUN clone/snapshot support

• File sharing:
  • Maximum local user accounts: 2,048

  • Maximum local groups: 256

  • Maximum shared folders: 512

  • Maximum concurrent SMB/NFS/AFP/FTP connections: 500

• Applications:

  • File Station: Virtual drive, remote folder, Windows ACL editor, compressing/extracting archived files, bandwidth control for specific users or groups, creating sharing links, transfer logs

  • Backup solutions: DSM configuration backup, macOS Time Machine support, Cloud Station Backup Shared folder sync - maximum tasks - 8

  • FTP Server: Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocol, boot over the network with TFTP and PXE support, transfer logs

  • High Availability Manager: Reduce service downtime by setting up two identical NAS into one high-availability cluster

• Fan: 2x (80 x 80 x 25 mm) Fans

• AC input power voltage: 100V to 240V AC

• Power frequency: 50/60Hz, single phase

• Dimensions (WxDxH): 430.5 x 297.6 x 88.0 mm; 481.9 x 306.6 x 88.0 mm (with server ears)

• Weight: 6.9 kg
• Package Contents: 1x RS1219+ main unit, 1x Quick Installation Guide, 1x Accessory pack, 1x AC power cord, 1x C13 to C14 power cord

• RoHS Compliant
