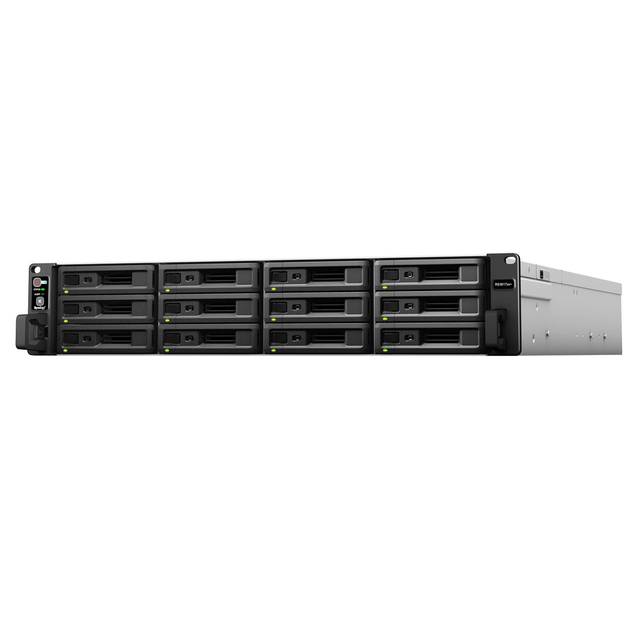

Zoom Synology RackStation RS3617XS+ 12-bay Rackmount NAS for Enterprises

Synology RackStation RS3617XS+ 12-bay Rackmount NAS for Enterprises

$5,614.15 $6,018.37

Specifications

  • Mfr Part Number: RS3617XS+
  • Hardware:
    • CPU: Intel Xeon D-1531 Six-Core 2.2GHz burst up to 2.7GHz (AES-NI)
    • Memory: 8GB DDR4-2133 ECC UDIMM (expandable up to 64GB)
    • Compatible Drive Bays: 12x 3.5" or 2.5" SATA3 HDD (Hard drive not included)
    • Max Internal raw Capacity: 120TB (12x 10TB HDD) (The actual capacity will differ according to volume types)
    • External ports: 2x USB 3.0 Ports, 2x Expansion Ports (Infiniband)
    • LAN: 2x 10GbE RJ-45 (10GBase-T), 4x 1GbE RJ-45
    • PCIe 3.0 x8 slot: Two running at x8 mode, supports two dual-port 10GbE network interface cards
    • Wake on LAN/WAN
    • Wireless support (dongle)
    • AC input power voltage: 100V to 240V AC
    • Power frequency: 50 / 60Hz, single phase
  • Networking Protocols: SMBSMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
  • File System:
    • Internal Drives: Btrfs, EXT4
    • External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
  • Storage management:
    • Maximum single volume size: 108TB/200TB (at least 32GB RAM required, for RAID 5 or RAID 6 groups only)
    • Maximum internal volume: 1024
    • Maximum iSCSI target: 128
    • Maximum iSCSI LUN: 512, RAID clone/snapshot support
    • Synology Expansion Unit support: RX1217/RX1217RP
  • File sharing capability:
    • Maximum user account: 16000
    • Maximum group: 512
    • Maximum shared folder: 512
    • Maximum concurrent SMB/AFP/FTP/File Station connections: 2048
  • Security: FTP over SSL/TLS, IP auto-block, firewall, encrypted network backup over Rsync, HTTPS connection
  • Utilities: Synology Web Assistant, Cloud Station Drive, Cloud Station Backup, Cloud Sync Decryption Tool, Evidence Integrity Authenticator,
    Photo Station Uploader, Snapshot Manager for VMware, Snapshot Manager for Windows, NFS Plug-in for VMware VAAI
  • Supported browsers: Chrome, Firefox, Internet Explorer 9 onwards, Safari 8 onwards, Safari (iOS 7 onwards on iPad), Chrome (Android 4.0 onwards on tablets)
  • Applications:
    • File Station: Virtual drive, remote folder, Windows ACL editor, compress/extract archived files, bandwidth control for specific users or groups, create sharing links, transfer logs
    • FTP Server: Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocols, boot over the network with TFTP  and PXE support, transfer logs
    • High Availability Manager: Combines two RS3617xs+ into one high-availability cluster
    • Security Advisor: Malware detection/removal, user account/password, network, system-related security scan
    • iOS/Android Applications: DS cloud, DS file, DS finder, DS cam, DS note, DS audio, DS download, DS photo, DS video
    • Windows Phone Applications: DS file, DS finder, DS audio, DS download, DS photo, DS video
  • Backup Solutions: Network backup; local backup; desktop backup; configuration backup; OS X Time Machine; backup data to public cloud; shared folder sync - maximum task number - 32
  • Supported Clients: Windows 7 onwards and Mac OS X 10.10 onwards
  • Certifications: FCC Class A, CE Class A, BSMI Class A
  • Dimensions (WxDxH): 430.5 x 692.0 x 88.0 mm
  • Weight: 14.5 kg
  • Package Contents: RS3617xs+ main unit, Quick Installation Guide, accessory pack, 2x AC power cord
  • RoHS Compliant

Vendor: Synology
