Specifications

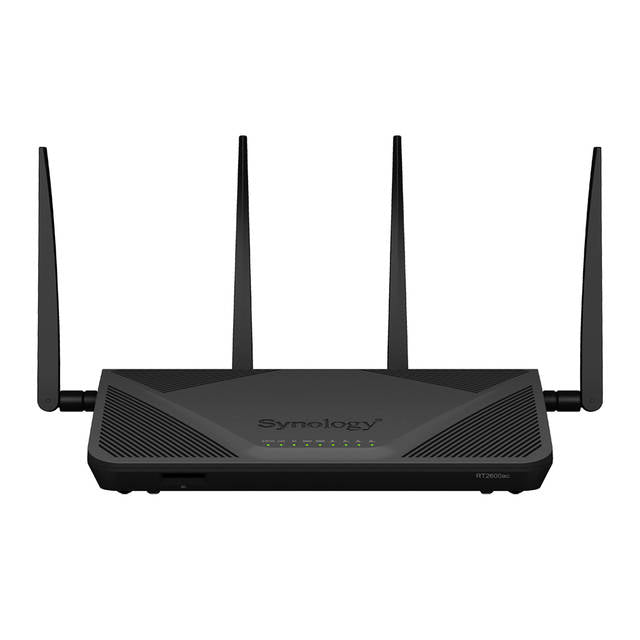

• Mfr Part Number: RT2600AC

• Hardware Specification:
  • CPU: Dual Core 1.7 GHz

  • Memory: 512 MB DDR3

  • Antenna Type: 4x4 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz)

  • LAN Port: 4x Gigabit RJ-45 Ports, 3x Gigabit RJ-45 Ports (Dual WAN)

  • WAN Port: 1x Gigabit RJ-45 Port, 2x Gigabit RJ-45 Ports (Dual WAN)

  • External Ports: 1x USB 3.0 Port, 1x USB 2.0 Port, 1x SD card reader (SDXC, SDHC)

  • Button and Switch: WPS, USB/SD eject, Power, Reset, Wi-Fi On/Off

• Wireless Specification:
  • IEEE 802.11ac:
    • IEEE 802.11a/b/g/n/ac

    • Simultaneous dual-band Wi-Fi

    • 2.4GHz - 800Mbps

    • 5GHz - 1.73Gbps
  • Supports:
    • Beamforming

    • Schedulable Wi-Fi

    • WPS 2.0 (Wi-Fi Protected Setup 2.0)
    • 3G/4G mobile dongle support
  • Maximum MAC filters: 64

  • Maximum connected devices: 100
• Power Supply:
  • AC Input Power Voltage: 100V to 240V AC

  • Power Frequency: 50/60 Hz, Single Phase

  • Power Consumption: 10.80 W (Access), 7.94 W (Idle)

• Certification: FCC Class B, CE Class B, BSMI Class B

• WiFi Certification: CE, FCC, NCC, RCM, iDA

• Operating System: Synology Router Manager (SRM)

• Security: Wi-Fi Encryption (WEP, WPA/WPA2 - Personal, WPA/WPA2 - Enterprise), Wi-Fi MAC Address Filter, Firewall / SPI Firewall, DoS Protection, Auto Block, SSL Certification, Security Advisor

• Dimension(WxDxH): 280.0 x 169.0 x 77.0 mm (w/o antenna)

• Weight: 0.7 kg

• Packaging Content:
  • Main Unit

  • Antenna x 4
  • AC Power Adapter
  • RJ-45 LAN Cable
  • Quick Installation Guide
