Specifications

• Mfr Part Number: CL-F055-PL12RE-A

• Features:

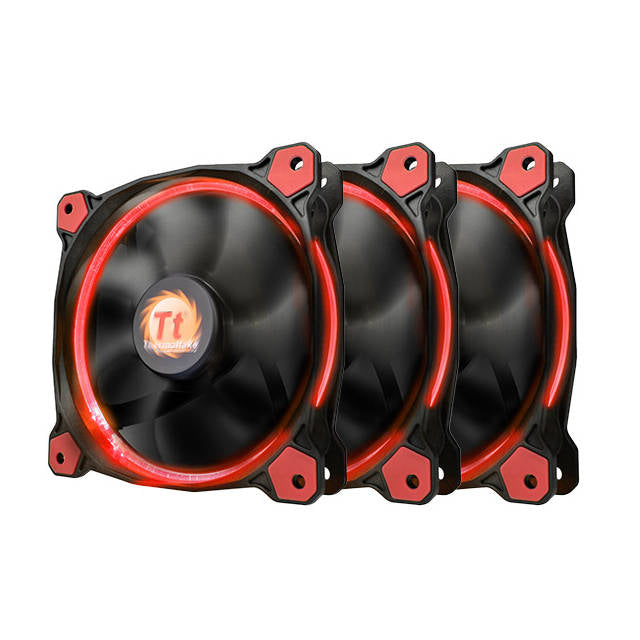

  • Riing 12 High Static Pressure LED Radiator Fan (3 Fans Pack)

  • Tt LCS Certified

  • Thermal Image Test
  • Concentrated Compression Blade
  • Wind Blocker Frame

  • Hydraulic Bearing with Low-Noise Design

  • Anti-vibration Mounting System

• Started Voltage: 9.0 V

• Rated Voltage: 12.0 V

• Rated Current: 0.2 A
• FAN Speed: 1500 rpm; 1000 rpm (with LNC)

• Max. Air Flow: 40.6 CFM

• Max. Air Pressure: 2.01 mm-H2O

• Noise: 24.6 dBA; 18.7 dBA (with LNC)

• Bearing Type: Hydraulic Bearing

• Life Expectation: 40,000 hrs, 25°C

• Connector: 3 Pin + LNC (Low-Noise Cable)

• Power Input: 2.4 W

• Dimensions: 120.0 x 120.0 x 25.0 mm

• Weight: 158.8 g
