Specifications

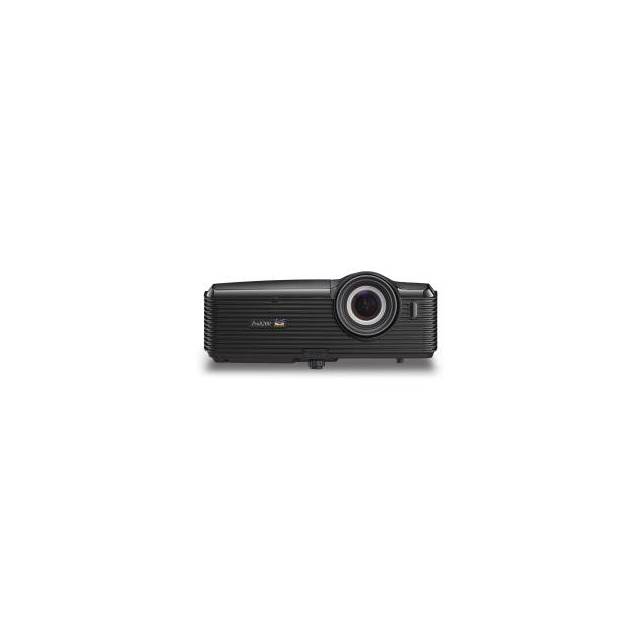

• Mfr Part Number: PRO8200
• Type: 0.66" Digital Micromirror Device (DLP)
• Resolution: 1920x1080 (1080p)
• Lens: 1.5x Manual optical zoom / Manual optical focus
• Keystone: Vertical digital keystone correction- +/- 20 degrees
• Display size: 30" - 300" / 0.76m - 7.6m
• Throw Distance: 0.9m - 10m / 3ft - 32.8ft
• Throw Ratio: 1.4 - 2.14:1
• Lamp type: 230W
• Lamp life (normal/eco-mode): 4000 / 6000 hours
• Brightness: 2000 ANSI Lumens
• Contrast Ratio: 4000:1 (dynamic)
• Aspect Ratio: 16:9 (native), 4:3, 16:10, auto
• Display Color Gamut: 70% NTSC 1931 CIE
• Input Signal:
  • Computer and Video: NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i and 1080p
  • Frequency: Fh - 30 ~100KHz, Fv - 50 ~ 85Hz
• Compatibility:
  • PC: VGA to 1080p
  • Mac: Up to 1080p
• Connector:
  • Digital: 2x HDMI 1.3
  • Composite Input: 1x RCA jack
  • S-Video Input: 1x 4-pin mini-DIN
  • Component: 3x RCA
  • Control: 1x RS-232 (DB-9)
  • RGB Input: 2x 15-pin mini D-sub
  • RGB Output: 1x 15-pin mini D-sub
  • Audio Input: 2x 3.5mm mini jack; 1x RCA (L/R)
  • Audio Out: 1x 3.5mm mini jack
  • USB: 1x Type A for firmware update
  • Screen Trigger: 3.5mm (12V/1A)
• Speakers: 2x 10W
• Power:
  • Voltage: 100~240V AC (Auto Switching), 50/60Hz (universal)
  • Consumption: max - 310W; stand-by mode - <1W
• Noise Level:
  • Normal: 31dB
  • Eco-mode: 27dB
• Dimensions (WxDxH): 13.1 x 10.4 x 4.3 inch / 332.7 x 264.2 x 110.0 mm
• Weight: 8.5 lbs / 3.86 kg
